12 Inch Drawer Slides, Metal Drawer Slide Small Drawer Rails Ball

Note: The drawer slide is a two-way rail, the inner rail is not removable.
Use on bedroom furniture, sliding cabinet doors, office cabinets, and bathroom cabinets.
Small drawer slides are designed with multiple fixed hole positions for easy installation and adjustment.
Soft close function avoids noise during the push-pull, makes it quieter, and the slow closing prevents your baby's hands from being clamped by the drawer.

Specification
Material: Cold Rolled Steel.
Feature: 2 Sections, Two Way.

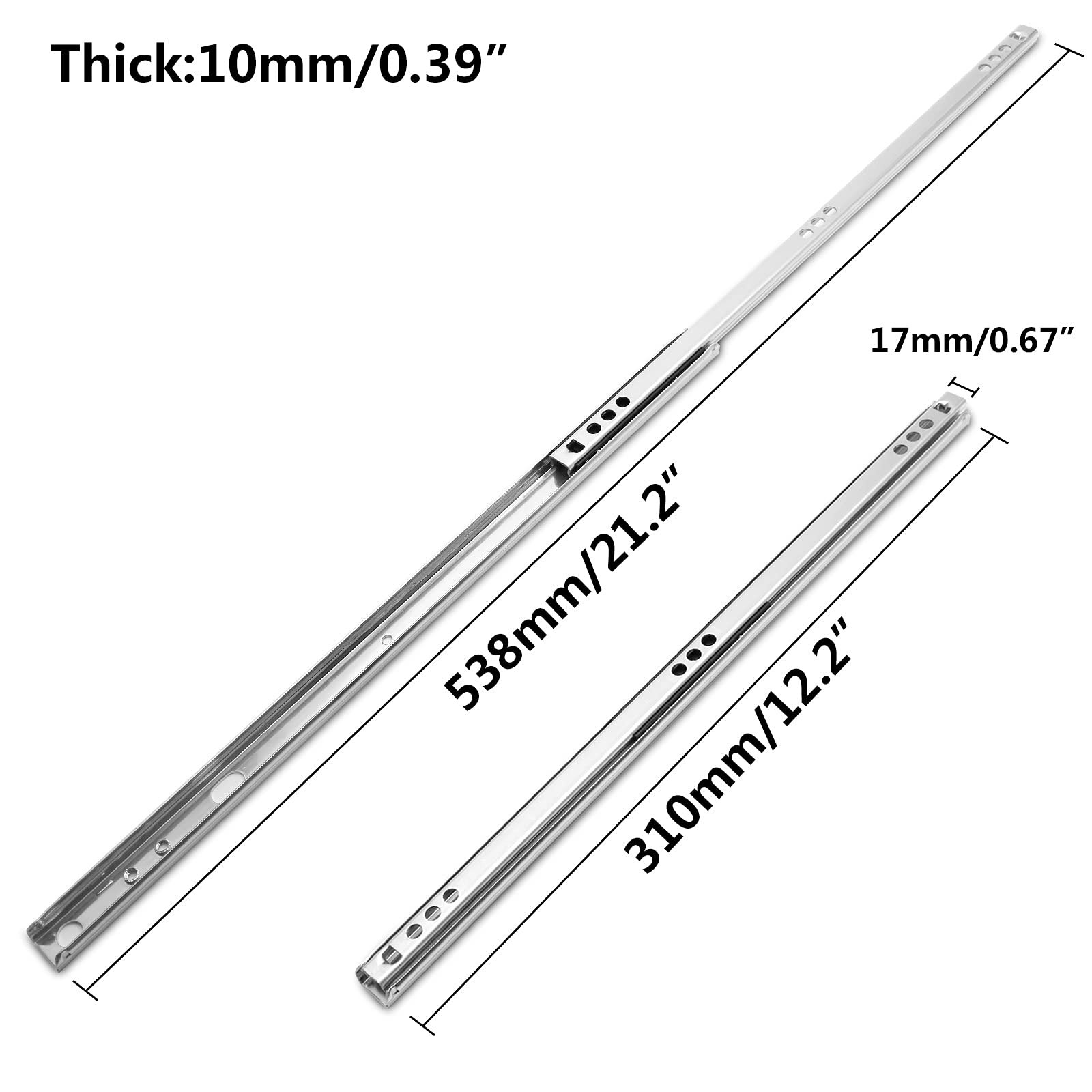

Folded Size: 310 x 17 x 10mm/12.2 x 0.67 x 0.39 inch.(L*W*H)
Opened Size: 538 x 17 x 10mm/21.2 x 0.67 x 0.39 inch.(L*W*H)

How to install ?
Step 1. Slide the drawer guide to expose the mounting hole.
Step 2. The narrower part screws to the inner side of the "sidewall" with the wood screws.
Step 3. The wider part slides into a groove on the drawer side and is attached by the screws tapped hole in the wider slide part.
Note: There will be a hole in the drawer to block the screw, which will not affect the use.

Note
Due to manual measurement, allow a deviation of 1 - 2mm.
